How Offshore Oil Rigs Work A Complete Guide
In the field of construction, along with the oil and gas industries, offshore oil rigs are essential for multiple firms. These strong foundations allow construction teams to work safely and efficiently.
Throughout this complete guide, there will be discussions of how offshore oil rigs work, including the definition and purpose of these offshore oil platforms. There will also be discourse on how they’re built, what the potential hazards are, etc.
Understanding these topics can help your industry be more knowledgeable about offshore oil rigs. While it is safe to work within these structures, it’s also an advantage to be aware of how it works and how work experience can be improved with Unmanned Aerial Vehicles (UAVs) and drones.
What Is an Offshore Oil Rig and How Is It Different From an Oil Platform?
Learning what an offshore oil rig is can be a significant step for teams working in the oil and gas industries. Workers are more confident to operate when they understand the structure, purpose, and their role at sea.
Firstly, the definition of offshore oil rigs refers to those large structures with the facilities and tools to extract and process various materials and resources beneath the seabed. It is temporarily deployed and is most likely to be relocated after the drilling and processing are complete.
Furthermore, the difference between an oil rig and a platform starts with their purpose. The purpose of offshore oil rigs centers on drilling exploratory and production wells, while the purpose of offshore oil platforms focuses on long-term production and processing.
Moreover, there are also types of offshore drilling structures, such as fixed platforms, floating platforms, and semi-submersible rigs. Here’s what makes each of them distinct:
- Fixed Platforms: This specific offshore structure is stationary and is particularly deployed for shallow-water production. It supports drilling, processing, and crew quarters, enabling stability for all teams and consistent workflow despite harsh marine conditions.
- Floating Platforms: In addition, floating platforms are deployed for deep-water operations. These are mobile, buoyant structures; hence, drilling in deep waters is feasible without fixed legs.
- Semi-Submersible Rigs: Lastly, this rig is necessary for stability in rough seas. Semi-submersible rigs are also floating platforms used for extracting oil and gas where the seabed is too deep for a fixed platform.
How Does an Offshore Oil Rig Work?
After knowing the definition of offshore oil rigs and their purpose, it’s also crucial to understand how an offshore oil rig works.
The offshore drilling process involves stages that are thoroughly engineered for the gas and oil extraction process from beneath the seabed. Each stage ensures that all crew workers are safe while working.
When it comes to the full drilling cycle, it follows a structured offshore drilling operation. From planning to production, the overview of the full drilling cycle is the following:
- Site Preparation: In this initial stage, geologists will analyze seabed data to identify which can be potential reservoirs, and the chosen land will be cleared and leveled. Site Preparation also involves moving and assembling the drilling rig and other necessary equipment onto the specific location.
- Drilling the Wellbore: Following the site preparation is the core mechanical operation in which drilling will start. Drilling the wellbore is a continuous process of circulation of drilling fluid, tripping the bit, and casing and cementing.
- Well Completion: When the drilling has reached its target depth, casing will be set, and the well is “completed”. This step is vital for the production stage, as it involves installing surface equipment and a series of valves for upcoming projects.
- Production & Well Abandonment: As the last of the full drilling cycle, the completed well can successfully produce oil and gas. With that, workers are able to operate the well once it’s permanently plugged and the land is restored. Additionally, offshore oil rigs are able to locate underwater reservoirs by using advanced subsurface analysis techniques.
Techniques include seismic survey maps that identify underground rock formations, gathered data showcasing the oil-bearing layers beneath the seabed, and employed engineers who determine the optimal location for drilling and extracting.
Drilling and extracting materials, and overall offshore oil rigs, frequently use machinery and follow key components. Offshore oil rig workers use the following equipment and machines:
- Drill Bits: This is utilized when cutting through rock layers and formations, from soft shale to hard granite. Its high-pressure drilling mud can cool the bit and carry rock cuttings back to the surface.
- Drill Strings: Necessary for transfer rotation and drilling force. It is managed by the rig’s hoisting systems to lift and lower the rig as new sections are added or removed.
- Risers: Has features that can connect the seabed well to the rig. The key functions involve a fluid conduit and guide system for the intended process.
- Mud Circulation Systems: It is a continuous loop that can pump drilling fluid through the wellbore and can cool the bit and stabilize pressure. Safety and pressure control systems also have to be established to ensure that all teams, equipment, and even the environment are protected.
There are various types of systems: blowout preventers (BOP), mud circulation, and monitoring systems, all of which attend to pressure surges and early warnings for offshore oil rigs.
How Does the Exploration Phase Work?
Offshore oil rigs also manage exploration. This phrase is recognized with viable drilling locations beneath the seabed. The offshore oil exploration phase involves scientific analysis, advanced technology, risk reduction methods, and the following:
- Geological Studies: Known as the foundation of offshore oil exploration, this starts with scientists analyzing rock formations, sediment layers, and historical data to predict where hydrocarbons are present.
- Seismic Survey Methods: The following is the method that transmits sound waves into the seabed in order to capture the reflected signals that reveal detailed images of rock formations.
- Identifying Potential Underwater Reservoirs: Integrating geological and seismic data can help engineers analyze the pressure and depth of the model to determine the size and commercial viability of underwater reservoirs.
Engineers are able to analyze the pressure and formation depth in this part of the exploration phase, resulting in models that showcase reservoir size and viability, and the results can offer guidance for the teams in making drill location decisions.
How Do Exploratory Wells Work?
These exploratory wells offshore certify underground formations that contain commercially viable oil and/ gas, becoming a critical part of offshore oil exploration and full-scale production. Exploratory wells work through the following:
Exploratory drilling confirms the presence and quality of hydrocarbons. Teams that perform exploratory drilling verify geological and seismic survey findings and establish wellbore creation feasibility.
- Exploratory Drilling: This confirms the presence and quality of hydrocarbons. Teams that perform exploratory drilling verify geological and seismic survey findings and establish wellbore creation feasibility.
- Sampling and Pressure Testing: It is associated with test drilling as it provides detailed subsurface information by collecting critical rock and fluid samples from the wellbore.
- Commercial Viability: Refers to the capability of the firm to proceed with development. With that, engineers have to evaluate the size of the reservoir and determine the productivity.
Production costs and returns must also be estimated through economic models, and regulatory and environmental factors are also reviewed.
Once exploratory wells offshore are viable to advance, teams can begin planning the production phase.
How Does the Production Phase Work?
Offshore oil production starts with safe, continuous extraction and surface delivery. Exploratory wells are now commercially viable; hence, production tubing and other tasks will follow. During the extraction process, crew are permitted to do the following:
- Install Production Tubing: Tubing projects involve steel tubes that are deployed inside the complete wellbore, and the valves used can regulate the flow rates within production systems.
- Handle Reservoir Pressure: When it comes to pressure control, it is vital for a stable production system. The crew must handle reservoir pressure effectively to protect equipment and maintain optimal output levels.
- Pump Crude Oil to the Surface: Workers should be aware of crude oil coming from the reservoir through the integrated production systems. During this part of the process, materials are extracted through production tubing and transported to offshore platforms, where they are then separated and stored for transport.
How Is Offshore Oil Transported?
When the production phase is complete, offshore oil transportation can start. Crude oil is moved from production sites to onshore facilities, relying on secure systems built for the marine environment.
- Subsea Pipelines: Provide continuous and efficient oil transfer as they connect the offshore platforms to shore. Materials are able to be transported safely with the strong pipes withstanding pressure, corrosion, and seabed movement.
This long-term subsea pipeline transport can be improved with a monitoring system that can detect leaks or flow changes, which informs the active crew.
- Floating Production Storage and Offloading (FPSO) vessels: Manage and store offshore oil before its delivery. FPSO vessels can receive oil directly from production systems, and this crude oil is then stored in these vessels until it is decided to be transferred or offloaded.
FPSO vessels can receive oil directly from production systems, and this crude oil is then stored in these vessels until it is decided to be transferred or offloaded. - Safety Checks during Transfer: Must also be implemented in order to protect personnel, assets, and even the environment. Safety checks during transfer reduce risks in every transfer stage.
Systems can be tested for integrity, while emergency shutdown systems should be active and effective. Workers also need to monitor the offshore oil transportation continuously.
How Are Offshore Oil Rigs Built?
The process of how are offshore oil rigs built involves offshore engineering principles. Each project follows controlled rig construction stages in order to ensure the safety and durability of the firm’s teams and equipment. With that, the overview of the full construction cycle is the following:
1. What Happens During the Design Phase?
The first step of the construction cycle is for workers to establish a foundation for safe and reliable offshore oil rig construction. This planning stage allows engineers to apply specialized offshore principles that can address complex structural and environmental demands.
Structural engineering is regarded as vital to ensure that rigs remain operational and can withstand environmental forces. Engineers must also calculate load-bearing equipment and select durable equipment capable of surviving long-term exposure.
Every design decision for offshore oil rigs must also take into account environmental loads such as wind, waves, currents, and seismic activity. By utilizing digital simulations, the crew is able to identify potential failure points and can quickly resolve them.
2. What Happens in the Fabrication Stage?
After the design phase, the fabrication stage allows firms to transform the completed designs into physical offshore oil rig components. The fabrication stage starts with steel framework creation. It forms the offshore oil rig’s primary structural support and applies protective coatings to prevent corrosion, ensuring the structures last for a long time.
Additionally, subsea components include anchors and structures, both of which can support the rig offshore. These components and foundations make certain that structures are stable and are able to transfer loads.
3. How Are Rigs Installed Offshore?
Following the fabrication stage is the installation of offshore oil rigs, in which there is intense coordination between engineers and field workers. In this process, they transport structural components from the fabrication yard to the designated site.
Once the cargo is on site, the piling and anchoring procedure can secure the steel piles and rig structures to the seabed. These anchoring systems are essential for stabilizing both floating structures and fixed offshore oil rigs.
The offshore installation last involves the connection of risers to bridge the gap between subsea wells and the surface facilities. This link between them allows a controlled flow of hydrocarbons, which completes the physical integration of the rigs.
4. What Is the Commissioning Phase?
The last part of the construction cycle involves the commissioning phase, which warrants that each offshore oil rig system must be operating safely before the beginning of production.
Other than system testing, the crew must also be trained. Implementing this training can help prepare the personnel for safe offshore operations.
From equipment handling procedures to reinforcing safety protocols, these crew trainings reduce operational risk and help workers to be well-trained. These final inspections, emergency shutdown tests, and regulatory approvals authorize the firm and the rig for operational use.

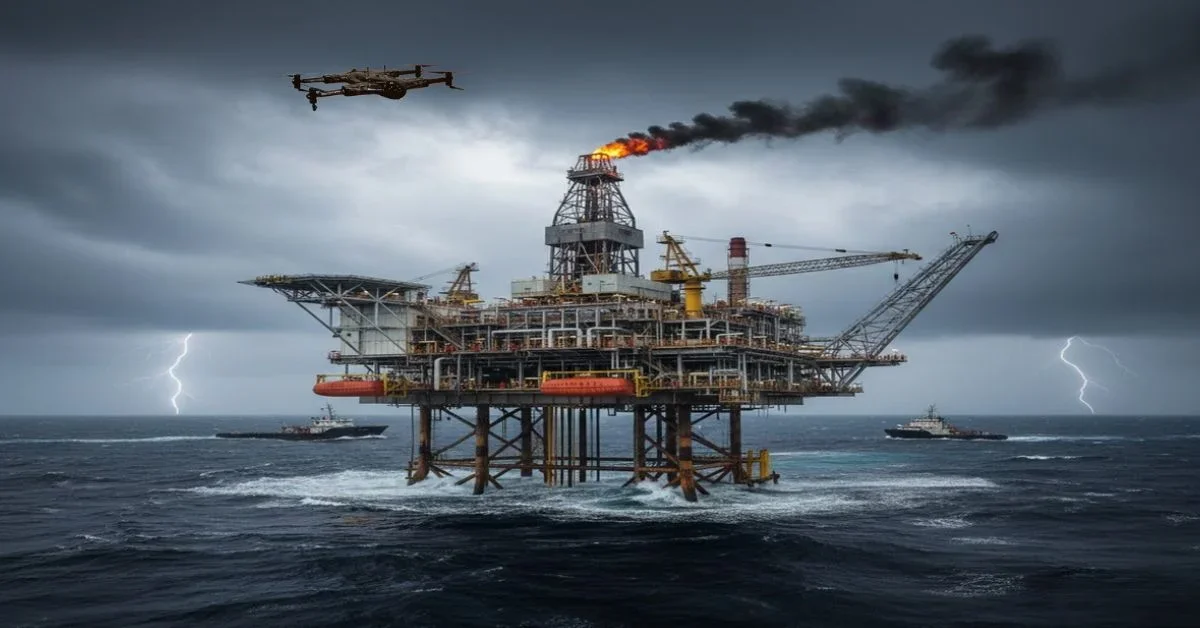

What Are the Hazards Associated With Offshore Oil Rigs?
As mentioned above, safety and protection are essential for personnel, equipment, and the environment. In the case of offshore oil rig hazards, it’s vital for everyone and everything to be aware of what to do.
These oil rig safety risks occur when workers are uncertain about their tasks during operation hours. Offshore oil rig hazards include the following major categories of risks, but are not limited to:
- Struck-by, Caught-in, and Caught-between Hazards: Working on an offshore oil rig requires transporting equipment and materials. This hazard is due to the crew moving equipment or being caught between machinery components, resulting in them being struck.
Hazards like these commonly arise when there are operations that involve lifting, rotating, and automated drilling. With that, it is essential to reinforce safety protocols before, during, and after work hours. - Fall Hazards: Offshore oil rigs often include working with elevated platforms and high-rise structures. Fall hazards happen because of the risk of falling from these elevated platforms, ladders, or walkways.
Additionally, workers should also be cautious and take into consideration the offshore environment of wet surfaces and strong winds. - Explosions and Fire Risks: During construction, there are cases of explosions and fire risks. Flammable gases, vapors, or liquids igniting can cause these hazards to offshore oil rigs.
In order to be safe and protected from explosions and fire risks, firms should implement strict control measures and essential protective gear for personnel and critical infrastructure. - Confined Spaces: These offshore oil rigs often include confined spaces. Workers are at risk in these enclosed spaces as they have limited ventilation and access.
Confined spaces can increase the risk of oxygen deficiency, toxic gases, and/or limited escape options in the case that the firm opts out of an emergency exit. - Ergonomic Hazards: When it comes to ergonomics, it refers to workers’ efficiency in their working environment. In offshore oil rigs, there are cases where ergonomic hazards come from repetitive tasks, awkward posture, and heavy manual handling.
These inefficient behaviors of workers can cause injuries and fatigue over time. - High-Pressure Equipment Hazards: Operating on offshore oil rigs can cause extreme pressure for the involved systems. High-pressure equipment hazards can impact the firm’s systems, also affecting its workers.
Sudden and abrupt releases of this high-pressure equipment can cause serious injury or equipment failure, which can slow down workflows within the rig. - Electrical and Stored Energy Hazards: As stated above, offshore oil rigs store various materials. There can be electrical and stored energy hazards from live electrical systems and from storing mechanical energy.
Unexpected releases of these electrical systems and stored energy can lead to shocks, burns, or uncontrolled equipment movement. - Machine Hazards: Crew operate with machines daily on offshore oil rigs. In cases where machine hazards happen, workers are interacting with rotating, cutting, or powered equipment.
Firms that operate on offshore oil rigs can decrease injury risk by incorporating adequate guarding and proper operation for their workers. - Vehicle and Helicopter Accident Risks: Other than machines, workers also use vehicles and helicopters. There are risks when operating these transportation devices, wherein incidents occur during offshore travel or logistics operations.
To add, offshore oil rigs are also at risk because of the harsh weather conditions and limited landing areas.
Offshore vs Onshore Oil Rigs Key Differences
After learning about offshore oil rigs, firms and workers also have to understand what makes it different from an onshore oil rig and other offshore drilling comparisons. Here are the distinct features of offshore vs onshore oil rigs:
- Cost Differences: When it comes to costs, offshore drilling has more expenses compared to onshore drilling. For offshore rigs, marine transport and specialized equipment are required, whereas onshore drilling only needs simpler logistics and infrastructure.
Maintenance costs are higher offshore. Overall, these cost differences have an impact on project feasibility.
- Structural Differences: Offshore oil rigs are also different from onshore oil rigs in their structural design, as it is based on the chosen location and the surrounding environment.
The structure for offshore rigs is engineered to endure and withstand waves and corrosion, whereas onshore rigs are built for land-based stability.
- Environmental Challenges: Both rigs have different environments, thus the various conditions can significantly impact them.
Since offshore oil rigs are based above seabeds, they naturally face storms, wave currents, and saltwater exposure. For onshore rigs, terrain and various weather conditions are to be expected.
- Accessibility: Workers’ access to locations within rigs can impact daily operations and emergency responses.
Offshore oil rigs depend on helicopters and vessels, while onshore drilling sites allow road-based access. Their accessibility affects response time and the firm’s costs.
- Safety Variations: The operating environments of both oil rigs cause safety risks. Firms need to prioritize worker protection for either rig.
The offshore oil rigs have their workers understand evacuation and fire control challenges, whereas onshore rigs have faster emergency support, as there are more response services on land.
How Are Offshore Oil Rigs Maintained?
In order for offshore oil rigs to be stable and to endure all external factors, firms should take into consideration offshore oil rig maintenance.
These preventive maintenance and rig inspections ensure all operations within rigs are safe and reliable. Protecting offshore oil rigs can involve various offshore oil rig maintenance, such as:
- Routine Inspections: With routine inspections, issues related to equipment, machines, and all that is used within the rig can be identified before they escalate into a problem. These include visual checks for structures and mechanical conditions, reading instruments to verify system performance, and inspecting reports of maintenance planning.
- Preventive Maintenance: Before issues and breakdowns occur, the maintenance crew can implement preventive measures to extend equipment lifespan. Workers can service and replace components according to schedule and test systems under controlled conditions, verifying that all are operational.
- Corrective Maintenance: Recognizing equipment faults and other rapid responses can help with a smoother workflow within the rig. This corrective maintenance involves repairing mechanical and electrical failures and providing permanent solutions for systems that restore full functionality.
- Spare Parts Management: Timely repairs are highly important as this improves efficiency for all workers and teams. Having effective spare parts management also enhances equipment and machine availability. Spare parts management requires tracking inventory systems and coordinating with the supplier in order to reduce delays.
- Safety Protocols: Workers and company personnel are significant to the firm, hence safety protocols must be followed as this protects them during maintenance activities. Safety briefings reinforce awareness and permit systems to manage high-risk tasks, which ensures safe and protected offshore oil rig maintenance.
How Can Drones Make Offshore Oil Rig Inspection Safer and Faster?
The success of offshore oil rig inspection can be boosted with Unmanned Aerial Vehicles (UAVs) and drones. Workflow can be safer, faster, and cost-effective when firms utilize drones for offshore oil rig inspection.
Diverse Applications
From unmanned inspection systems to drone inspection benefits, these are the many benefits of UAVs and drones for offshore oil rigs:
- Security Monitoring: UAVs and most modern drones are integrated with cameras that capture high-quality images and footage. Utilizing technology can enhance offshore security monitoring. Drones are able to patrol restricted areas and perimeters and even provide rapid situational awareness that can strengthen security controls.
- Gas Emission Monitoring: In offshore oil rigs, materials such as gas are extracted daily. This causes gas emissions, and in order for personnel to be safe, drones can be used to detect and monitor gas emissions. With sensors from drones, this advanced technology can identify leaks before they escalate and harm the crew and the environment.
- Oil Spill Detection and Response: Other than gas, oils are also drilled in rigs every day. Drones can help workers with oil spill identification. These drones are specially engineered to monitor surface conditions and capture imagery for response planning, enabling fast detection for various materials.
- Structural Integrity and Stability Monitoring: Offshore oil rigs are built with structures, and these properties are regarded as essential. Hence, structural health needs to be constantly assessed. Drones are equipped to assist in inspecting the legs and decks of rigs while tracking any changes over time, like corrosion and cracks in certain structural areas. Advanced technology like this can help firms be proactive with maintenance planning.
- Platform and Equipment Inspection: Besides structure, the platforms and equipment of offshore oil rigs are also vital. It helps workers deliver their day-to-day tasks. With that, drones can inspect critical offshore equipment efficiently by examining and capturing any details in order to improve inspection reliability.
FAQs About Offshore Oil Rig Work
How does an offshore oil rig start the drilling process?
To start the drilling process, offshore oil rigs conduct a site survey and certify that the chosen reservoir has potential. Once the rig positions itself, drilling equipment can be deployed, and drilling can begin.
What equipment is essential for offshore oil rig operations?
Offshore oil rig operations require different kinds of equipment, such as the drill bit, drill string, riser, and blowout preventer. In addition, support systems can also benefit as they manage power, safety, and communication.
How do offshore oil rigs stay stable in deep water?
Before deploying offshore oil rigs, engineers and workers must ensure that every deployed structure is stable. By using subsea foundations, anchors, and dynamic positioning systems, offshore oil rigs can endure harsh conditions like waves, currents, and wind forces.
What is the role of drilling mud in offshore drilling?
Drilling mud can actually cool the drill bit, as well as remove rock cuttings from the equipment. This can also control the pressure while also stabilizing the wellbore.
How is oil transported from offshore rigs to land?
Oil can move from offshore rigs through subsea pipelines or FPSO vessels, as mentioned above. The extracted oil is then transferred to tankers and onshore facilities.
How are workers kept safe on offshore oil rigs?
Workers are safe on offshore oil rigs as they have gone through training and strict procedures. They also have quality protective equipment and gear that can help them when there is an emergency or during regular drills.
What environmental protections do offshore oil rigs use?
Rigs often utilise prevention systems, emission monitoring, and waste controls. Regulations like these require consistent environmental compliance.
How do engineers locate underwater oil reservoirs?
Engineers are able to locate the reservoirs by using geological studies and seismic surveys. Analyzing the gathered data can help them identify potential oil-bearing formations.
How long does it take to drill a well on an offshore oil rig?
Drilling duration can vary as it depends on the chosen depth and the current and upcoming conditions. Most wells take from weeks to several months.
